Description

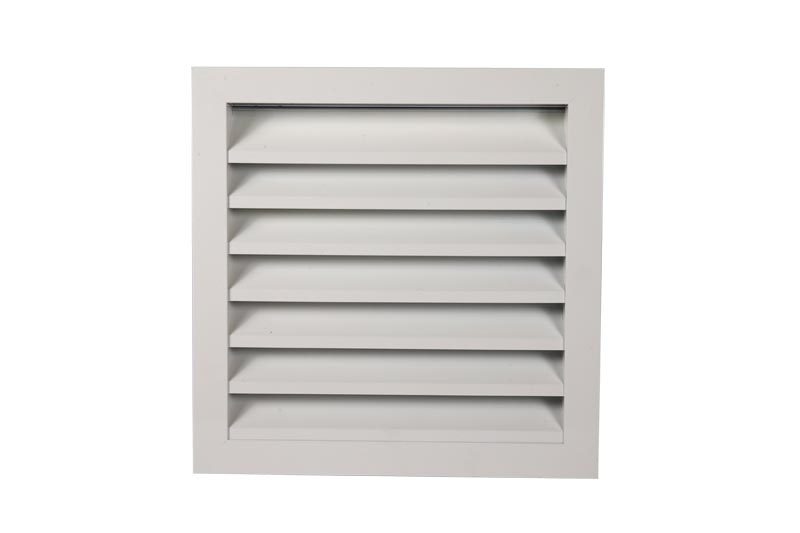

Fresh air louver are mainly used in the fresh air intake  system of a building. The fixed blades of a louver are arranged in such a way that is allows the flow of air meanwhile preventing the ingress of water at a nominal inlet velocity. The construction of a fresh air louver consists of a louver with washable Aluminium filter or synthetic filter fixed behind the louver. It is also supplied with an option of a damper fixed behind.
Airmaster manufatures a specialized product for fresh air intake assembly. It is a combination of  Louver, sand trap louver, washable aluminium filter and volume control damper. It is a product specified by many consultants across the middle-east for fresh air intake.
Description:

• Composed of frame and horizontal blade assembly made of high quality extruded aluminium profile with the advantages of durability and corrosion resistance.
• Designed to have sturdy construction. Blades are fixed to the main frame using screws and riveted to the mullions for bigger sizes.
• Louver is fixed with a removable/washable filter with aluminium mesh as the filter media.
• Weather resistant structure with blades inclined at an angle of 45^o to protect against rain water penetration.
• Assembly provides around 45% effective pressure area.
• Multiple sections will be assembled as per request.

Standard Finishes:

• Natural anodized aluminium finish.
• Epoxy powder coated finish. Color as per clients’ choice.

Options:

• Flange width: 12, 16, 24mm flange widths are optional
• Mesh :
  • 12 x 12 x 1.5mm dia aluminium PVC coated wire mesh
  • 12 x 12 x 1mm dia G.I wire mesh
  • S Mesh
• Insect Screen
• Filter thickness: 12mm or 45mm

Optional Frame and Blade: 2mm thick profile is available for heavy duty application
