Description

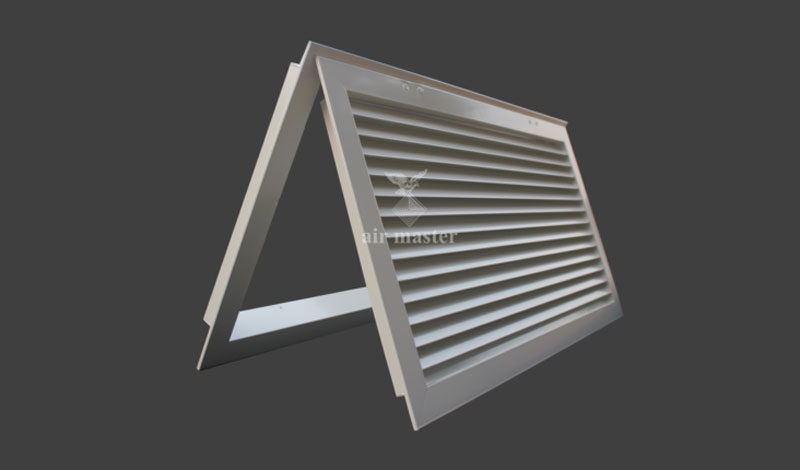

Door Grille with Double Frame
Description:

• Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
• Inverted “V” type horizontal blades are fixed rigidly to the frame to avoid vibration and corrosion.
• Blades are spaced at a distance of 20 mm.
• Provided with a counter frame for fixing on both sides of the door.
• Made to withstand heavy use to which door grilles are subjected.
• Frame is fabricated to suit door thickness of 30 mm to 60 mm.
• Structure provides around 55% free area for air transmission.
• Used in facilities such as offices, hospitals, schools and toilets for transfer of air from one room to another room.

Standard finishes:

• Natural anodized aluminium finish.
• Powder coated color finish as per RAL color codes.
• Flexibility of finishing available as option.

Standard sizes:

• Available in square and rectangular sizes.
• Non standard sizes are available as option.

Fixing details:

• Screw fixing from flange to door.

ADG1	ADG2

Product Summary:

Product Order Checklist

• Model
• Size
• Quantity
• Colour (RAL 9010,9016,Anodized aluminium finish or other RAL colours)

MODEL : ADG1 – Door Grille with Single Frame
