Description

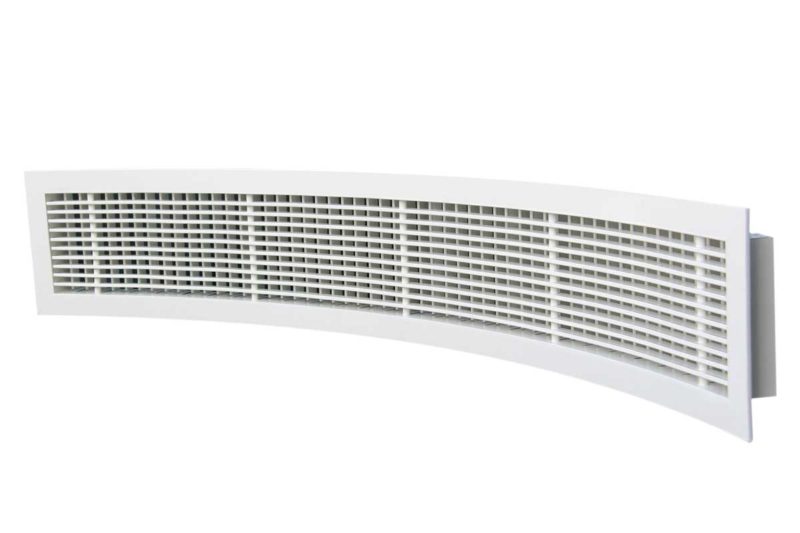

Curved Linear bar grilles are aesthetically appealing products that are designed to be installed in curved walls. The blades and frames of the curved linear bar grilles are bent gradually using a continuous bending process to match the radius of the wall. Vertical blades are fixed to the rear, to change of airflow. Damper is available as an option. Curved linear bar grille are available in both convex and concave shapes as seen in the image.
While Curved linear bar grilles are for the wall, airmaster proposes curved linear slot diffusers for the ceiling.
Airmaster manufactures several types of HVAC grilles such double deflection and single deflection grilles/registers, linear grilles, door grilles, egg crate grilles, perforated grilles and security grilles.
Curved linear bar grilles are used for curved wall applications.
- Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity.
- Horizontal face bars with 0° and 15° – 2 way throw are fixed rigidly to the frame with 8 mm pipes.
- Vertical aluminium aerofoil blades are fixed at the rear side of the frame by nylon bushings. These blades can be adjusted manually and individually in the vertical plane to obtain optimum air distribution.
- For perfect unbroken appearance of continuous runs, alignment strips are provided.
- Supply and return air curved linear bar grilles are available up to a length of 3mts with a minimum radius of curvature of 1 meter.
- Available without damper. Dampers can be provided to use in plenum boxes as option.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
- Curved bar grilles are available upto 3 m in a single piece, with minimum 1 m radius.
- Supplied with C – clamps for concealed fixing.
Standard finishes:
- Natural anodized aluminium finish.
- Powder coated color finish as per RAL color codes.
- Flexibility of finishing available as op
Model: ARLG (C)
- Same as ASLG (C). without vertical aerofoil blades.
